Цената е без ДДС

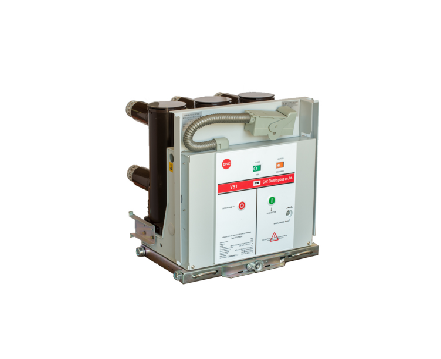

Вакуумен прекъсвач, HANDCART- embedded 275mm phase distance 220VDC/230VAC /24VDC
Vacuum circuit breaker IEC/EN 62271-1:20018, IEC/EN 62271-100:2009/А1:2012

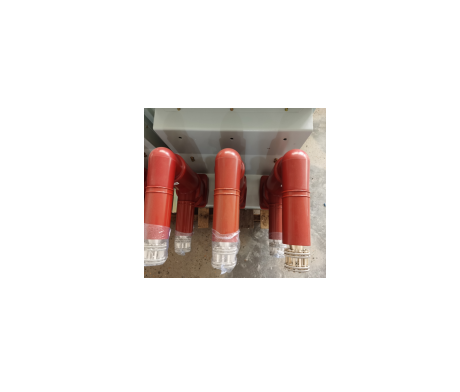

С с вграден тип на полюсите
Варианти:
1) Um=24kV, Ir=630A, Ik=16kA/3s, Ip=2,5Ik, 5NO, 5NC, ≤ 45μΩ
2) Um=24kV, Ir=1250A, Ik=25kA/3s, Ip=2,5Ik, 8NO, 8NC, ≤ 45μΩ
3) Um=24kV, Ir=2000A, Ik=25kA/3s, Ip=2,5Ik, 8NO, 8NC, ≤ 45μΩ
4)Um=24kV, Ir=2500A, Ik=25kA/3s, Ip=2,5Ik, 8NO, 8NC, ≤ 45μΩ
